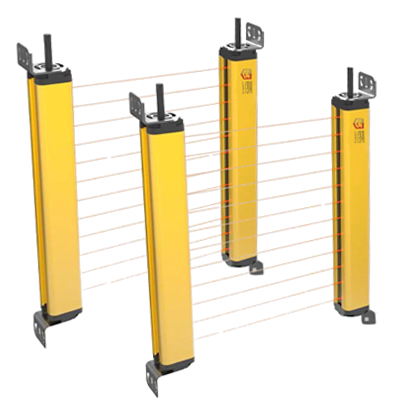

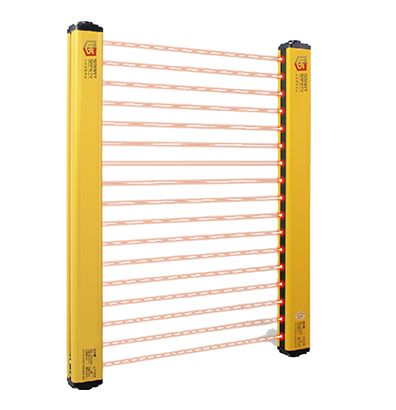

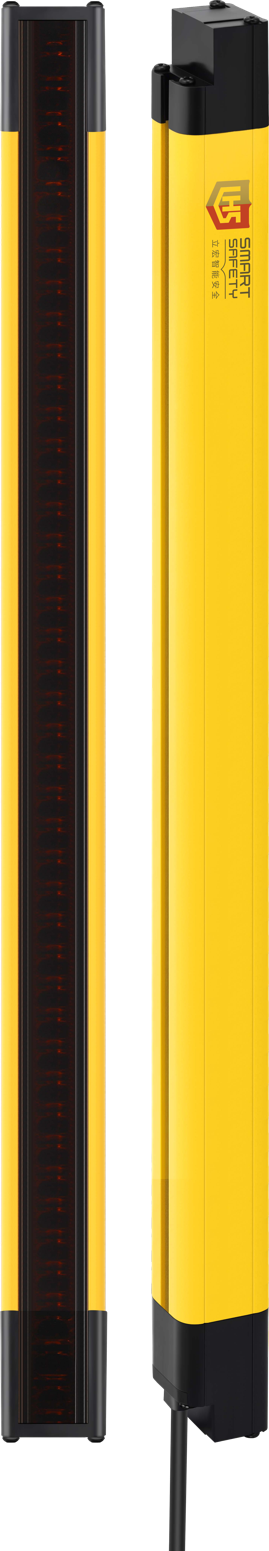

| ·采用循环CPU自检技术，当自身出现故障时（如光源不同步；光强度不够；CPU出错； 发射电路短路、断路等）光栅能确保不向所控制的设备发出错误的信号，安全性能卓越。 ·采用光同步技术，发射端与接收端之间无需导线连接，适合远距离安装，接线简单，也可以采用线同步技术，增强抗电磁干扰能⼒。 ·采用输出过载保护和短路保护功能，当输出过载或短路时，光栅将进⼊保护状态。 ·采用单路或双路独立OSSD冗余输出，可直接驱动安全继电器和安全PLC，确保光栅运行 更加可靠。 ·可根据客户要求订制：自动屏蔽和固定屏蔽功能。 |
| ▊ | 规格型号表 |
LE2-10系列（手指保护型） | LE2-20系列（手掌保护型） | LE2-40系列（手臂/人保护型） | ||||||
14分辨率 | 25分辨率 | 45分辨率 | ||||||
光栅型号 | 总高度 | 保护高度 | 光栅型号 | 总高度 | 保护高度 | 光栅型号 | 总高度 | 保护高度 |
LE2-10-0080 | 106mm | 80mm | LE2-20-0080 | 106mm | 80mm | LE2-40-0160 | 186mm | 160mm |
LE2-10-0100 | 126mm | 100mm | LE2-20-0120 | 146mm | 120mm | LE2-40-0240 | 266mm | 240mm |
LE2-10-0120 | 146mm | 120mm | LE2-20-0160 | 186mm | 160mm | LE2-40-0320 | 346mm | 320mm |
LE2-10-0140 | 166mm | 140mm | LE2-20-0200 | 226mm | 200mm | LE2-40-0400 | 426mm | 400mm |
LE2-10-0160 | 186mm | 160mm | LE2-20-0240 | 266mm | 240mm | LE2-40-0480 | 506mm | 480mm |
LE2-10-0180 | 206mm | 180mm | LE2-20-0280 | 306mm | 280mm | LE2-40-0560 | 586mm | 560mm |
LE2-10-0200 | 226mm | 200mm | LE2-20-0320 | 346mm | 320mm | LE2-40-0640 | 666mm | 640mm |
LE2-10-0220 | 246mm | 220mm | LE2-20-0360 | 386mm | 360mm | LE2-40-0720 | 746mm | 720mm |
LE2-10-0240 | 266mm | 240mm | LE2-20-0400 | 426mm | 400mm | LE2-40-0800 | 826mm | 800mm |
LE2-10-0260 | 286mm | 260mm | LE2-20-0440 | 466mm | 440mm | LE2-40-0880 | 906mm | 880mm |
LE2-10-0280 | 306mm | 280mm | LE2-20-0480 | 506mm | 480mm | LE2-40-0960 | 986mm | 960mm |
LE2-10-0300 | 326mm | 300mm | LE2-20-0520 | 546mm | 520mm | LE2-40-1040 | 1066mm | 1040mm |
LE2-10-0320 | 346mm | 320mm | LE2-20-0560 | 586mm | 560mm | LE2-40-1120 | 1146mm | 1120mm |
LE2-10-0340 | 366mm | 340mm | LE2-20-0600 | 626mm | 600mm | LE2-40-1200 | 1226mm | 1200mm |
LE2-10-0360 | 386mm | 360mm | LE2-20-0640 | 666mm | 640mm | LE2-40-1280 | 1306mm | 1280mm |
LE2-10-0380 | 406mm | 380mm | LE2-20-0680 | 706mm | 680mm | LE2-40-1360 | 1386mm | 1360mm |
LE2-10-0400 | 426mm | 400mm | LE2-20-0720 | 746mm | 720mm | LE2-40-1440 | 1466mm | 1440mm |
LE2-10-0420 | 446mm | 420mm | LE2-20-0760 | 786mm | 760mm | LE2-40-1520 | 1546mm | 1520mm |
LE2-10-0440 | 466mm | 440mm | LE2-20-0800 | 826mm | 800mm | LE2-40-1600 | 1626mm | 1600mm |
LE2-10-0460 | 486mm | 460mm | LE2-20-0840 | 866mm | 840mm | LE2-40-1680 | 1706mm | 1680mm |
LE2-10-0480 | 506mm | 480mm | LE2-20-0880 | 906mm | 880mm | LE2-40-1760 | 1786mm | 1760mm |
LE2-10-0500 | 526mm | 500mm | LE2-20-0920 | 946mm | 920mm | LE2-40-1840 | 1866mm | 1840mm |
LE2-10-0520 | 546mm | 520mm | LE2-20-0960 | 986mm | 960mm | LE2-40-1920 | 1946mm | 1920mm |
LE2-10-0540 | 566mm | 540mm | LE2-20-1000 | 1026mm | 1000mm | LE2-40-2000 | 2026mm | 2000mm |
LE2-10-0560 | 586mm | 560mm | LE2-20-1040 | 1066mm | 1040mm | LE2-40-2080 | 2106mm | 2080mm |
LE2-10-0580 | 606mm | 580mm | LE2-20-1080 | 1106mm | 1080mm | LE2-40-2160 | 2186mm | 2160mm |
LE2-10-0600 | 626mm | 600mm | LE2-20-1120 | 1146mm | 1120mm | LE2-40-2240 | 2266mm | 2240mm |
LE2-10-0620 | 646mm | 620mm | LE2-20-1160 | 1186mm | 1160mm | LE2-40-2320 | 2346mm | 2320mm |
LE2-10-0640 | 666mm | 640mm | LE2-20-1200 | 1226mm | 1200mm | LE2-40-2400 | 2426mm | 2400mm |
LE2-10-0660 | 686mm | 660mm | LE2-20-1240 | 1266mm | 1240mm | LE2-40-2480 | 2506mm | 2480mm |
LE2-10-0680 | 706mm | 680mm | LE2-20-1280 | 1306mm | 1280mm | LE2-40-2560 | 2586mm | 2560mm |
LE2-10-0700 | 726mm | 700mm | LE2-20-1320 | 1346mm | 1320mm | / | / | / |
LE2-10-0720 | 746mm | 720mm | LE2-20-1360 | 1386mm | 1360mm | / | / | / |
LE2-10-0740 | 766mm | 740mm | LE2-20-1400 | 1426mm | 1400mm | / | / | / |
LE2-10-0760 | 786mm | 760mm | LE2-20-1440 | 1466mm | 1440mm | / | / | / |
LE2-10-0780 | 806mm | 780mm | LE2-20-1480 | 1506mm | 1480mm | / | / | / |
LE2-10-0800 | 826mm | 800mm | LE2-20-1520 | 1546mm | 1520mm | / | / | / |
LE2-10-0820 | 846mm | 820mm | LE2-20-1560 | 1586mm | 1560mm | / | / | / |
LE2-10-0840 | 866mm | 840mm | LE2-20-1600 | 1626mm | 1600mm | / | / | / |
LE2-10-0860 | 886mm | 860mm | LE2-20-1640 | 1666mm | 1640mm | / | / | / |
LE2-10-0880 | 906mm | 880mm | LE2-20-1680 | 1706mm | 1680mm | / | / | / |
LE2-10-0900 | 926mm | 900mm | LE2-20-1720 | 1746mm | 1720mm | / | / | / |
LE2-10-0920 | 946mm | 920mm | LE2-20-1760 | 1786mm | 1760mm | / | / | / |
LE2-10-0940 | 966mm | 940mm | LE2-20-1800 | 1826mm | 1800mm | / | / | / |
LE2-10-0960 | 986mm | 960mm | LE2-20-1840 | 1866mm | 1840mm | / | / | / |
LE2-10-0980 | 1006mm | 980mm | LE2-20-1880 | 1906mm | 1880mm | / | / | / |
LE2-10-1000 | 1026mm | 1000mm | LE2-20-1920 | 1946mm | 1920mm | / | / | / |
LE2-10-1020 | 1046mm | 1020mm | LE2-20-1960 | 1986mm | 1960mm | / | / | / |
LE2-10-1040 | 1066mm | 1040mm | LE2-20-2000 | 2026mm | 2000mm | / | / | / |
LE2-10-1060 | 1086mm | 1060mm | LE2-20-2040 | 2066mm | 2040mm | / | / | / |
LE2-10-1080 | 1106mm | 1080mm | LE2-20-2080 | 2106mm | 2080mm | / | / | / |
LE2-10-1100 | 1126mm | 1100mm | LE2-20-2120 | 2146mm | 2120mm | / | / | / |
LE2-10-1120 | 1146mm | 1120mm | LE2-20-2160 | 2186mm | 2160mm | / | / | / |
LE2-10-1140 | 1166mm | 1140mm | LE2-20-2200 | 2226mm | 2200mm | / | / | / |
LE2-10-1160 | 1186mm | 1160mm | LE2-20-2240 | 2266mm | 2240mm | / | / | / |
LE2-10-1180 | 1206mm | 1180mm | LE2-20-2280 | 2306mm | 2280mm | / | / | / |
LE2-10-1200 | 1226mm | 1200mm | LE2-20-2320 | 2346mm | 2320mm | / | / | / |
LE2-10-1220 | 1246mm | 1220mm | LE2-20-2360 | 2386mm | 2360mm | / | / | / |
LE2-10-1240 | 1266mm | 1240mm | LE2-20-2400 | 2426mm | 2400mm | / | / | / |
LE2-10-1260 | 1286mm | 1260mm | LE2-20-2440 | 2466mm | 2440mm | / | / | / |
LE2-10-1280 | 1306mm | 1280mm | LE2-20-2480 | 2506mm | 2480mm | / | / | / |
LE2-10-1300 | 1326mm | 1300mm | LE2-20-2520 | 2546mm | 2520mm | / | / | / |
LE2-10-1320 | 1346mm | 1320mm | LE2-20-2560 | 2586mm | 2560mm | / | / | / |
LE2-10-1340 | 1366mm | 1340mm | / | / | / | / | / | / |
LE2-10-1360 | 1386mm | 1360mm | / | / | / | / | / | / |
LE2-10-1380 | 1406mm | 1380mm | / | / | / | / | / | / |
LE2-10-1400 | 1426mm | 1400mm | / | / | / | / | / | / |
LE2-10-1420 | 1446mm | 1420mm | / | / | / | / | / | / |
LE2-10-1440 | 1466mm | 1440mm | / | / | / | / | / | / |
LE2-10-1460 | 1486mm | 1460mm | / | / | / | / | / | / |
LE2-10-1480 | 1506mm | 1480mm | / | / | / | / | / | / |
LE2-10-1500 | 1526mm | 1500mm | / | / | / | / | / | / |
LE2-10-1520 | 1546mm | 1520mm | / | / | / | / | / | / |
LE2-10-1540 | 1566mm | 1540mm | / | / | / | / | / | / |
LE2-10-1560 | 1586mm | 1560mm | / | / | / | / | / | / |
LE2-10-1580 | 1606mm | 1580mm | / | / | / | / | / | / |
LE2-10-1600 | 1626mm | 1600mm | / | / | / | / | / | / |

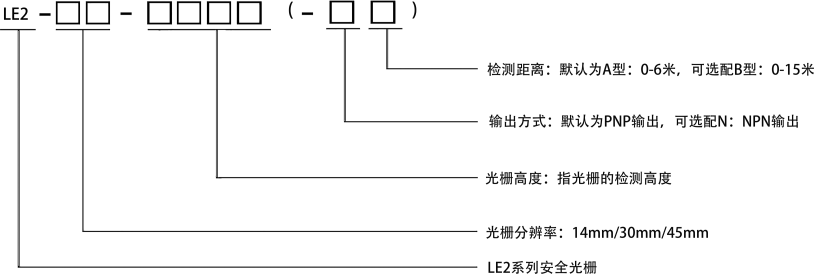

▊型号说明
 |
示例： LE2-20-0520，即为光间距为20，保护高度为520mm，PNP输出，直接出线的光同步单路输出安全光栅 LE2-20-0520-NJ-XTD，即为光间距为20，保护高度为520mm，NPN输出，接插件型的线同步双路输出安全光栅 |
▊技术参数

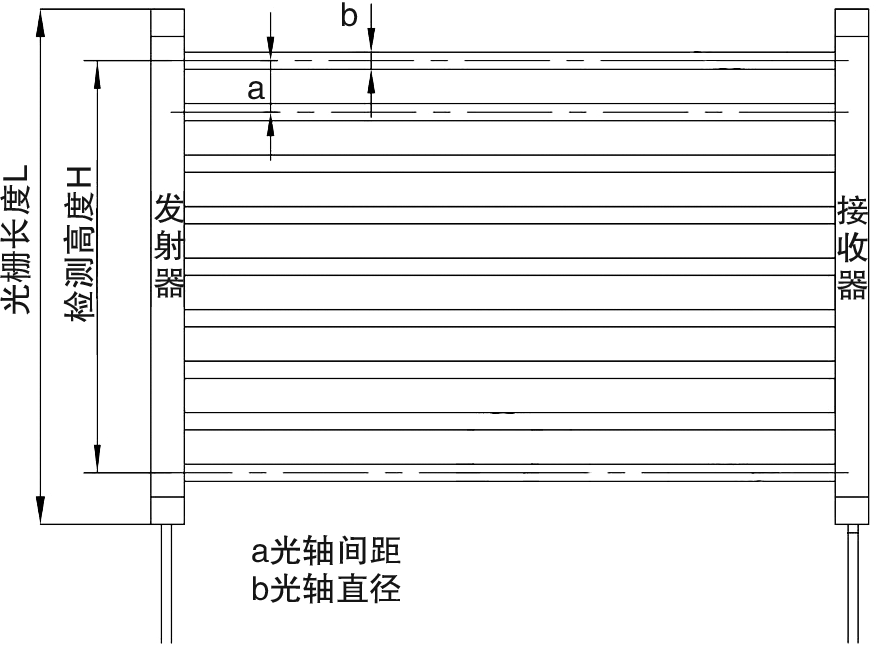

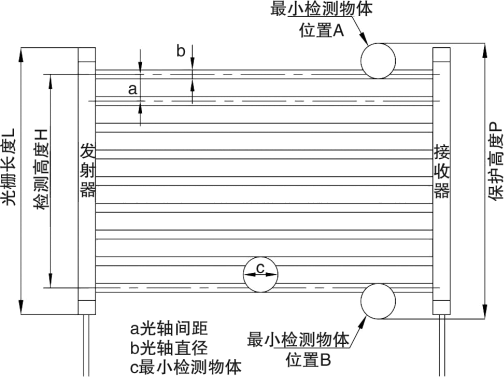

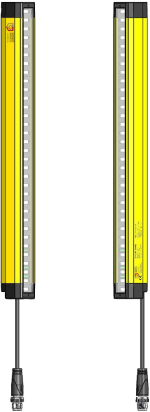

保护高度（按光束间距而定） | |
10mm | 80mm~ 1600mm |
20mm | 80mm~2560mm |
40mm | 160mm~2560mm |
指标参数 | |
保护范围 | 0.2~2m |
分辨率 | 14mm， 25mm， 45mm |
同步类型 | 光学同步、线同步 |
电气参数 | |
工作电压 | 24VDC±10% |
响应时间 | 4~58ms |
最大功率 | 发射器， 接收器各5W |
输出信号 | 1*PNP/1*NPN；2*PNP/2*NPN |
内部保护 | 电源极性保护，输出短路保护，输出过载保护 |
最大输出电流 | 200mA |
防护等级 | IP65 |
工作温度 | -10℃~+55℃ |
储存温度 | -25℃~+70℃ |
连接类型 | 航空插头接插引线式或直接出线式 |
外壳截面尺寸 | 27mmx28mm |

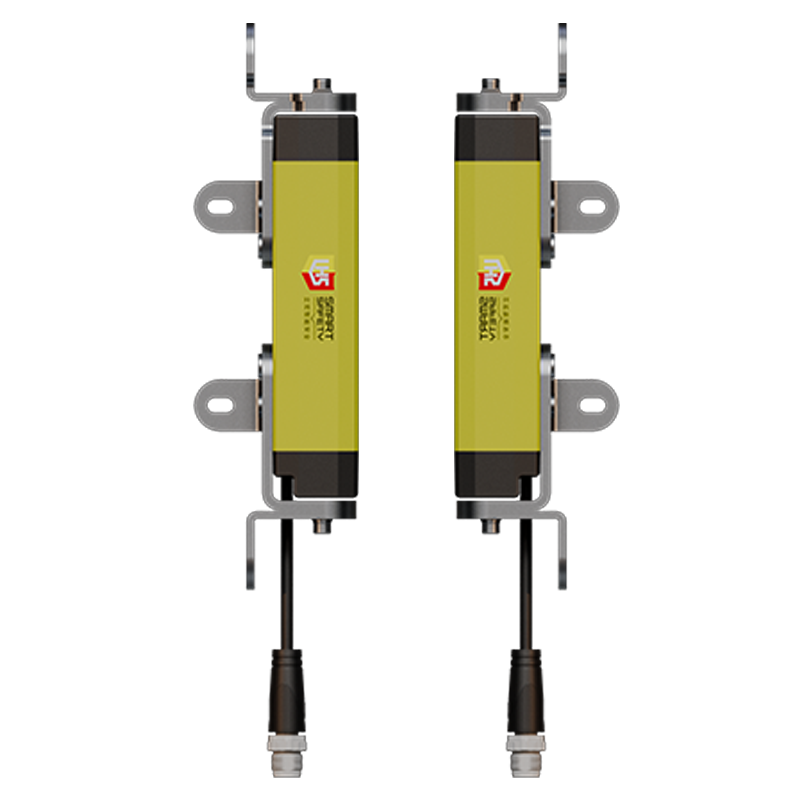

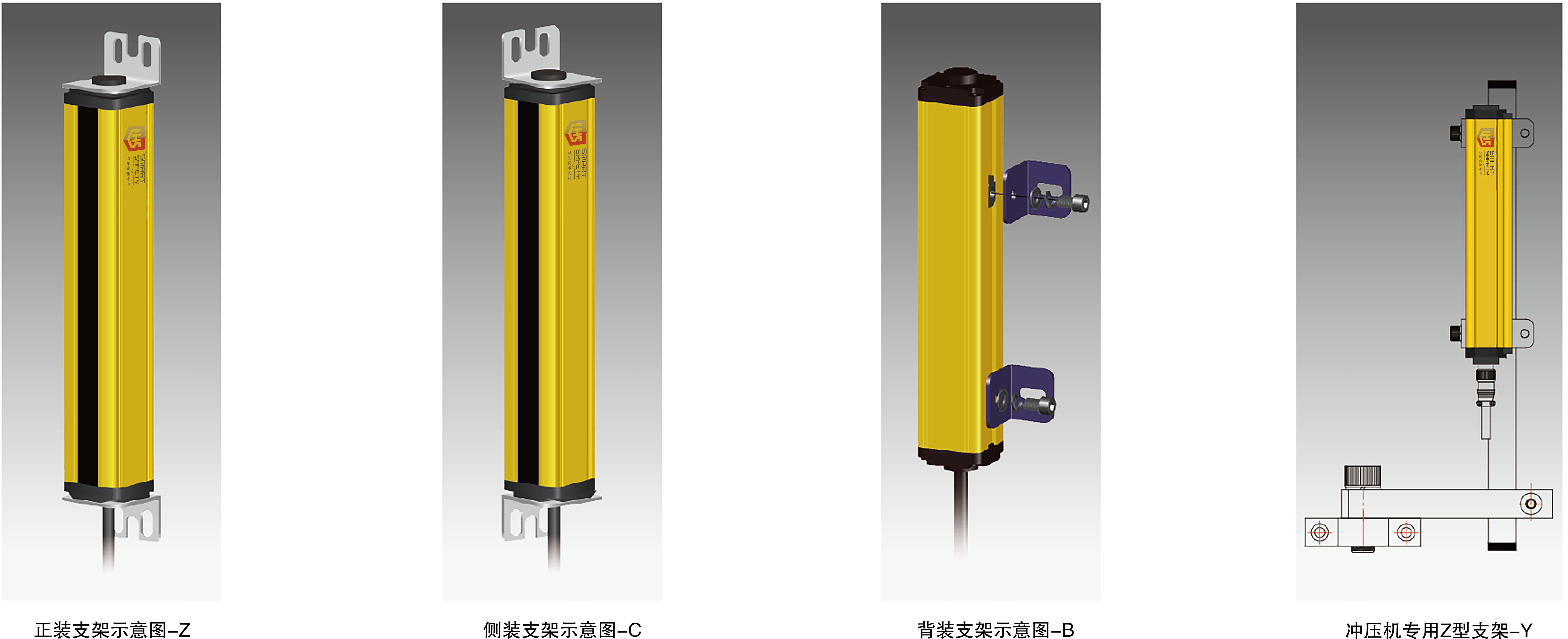

安装方式 | 提供L型两头安装⽀架安装或背后通槽安装 |

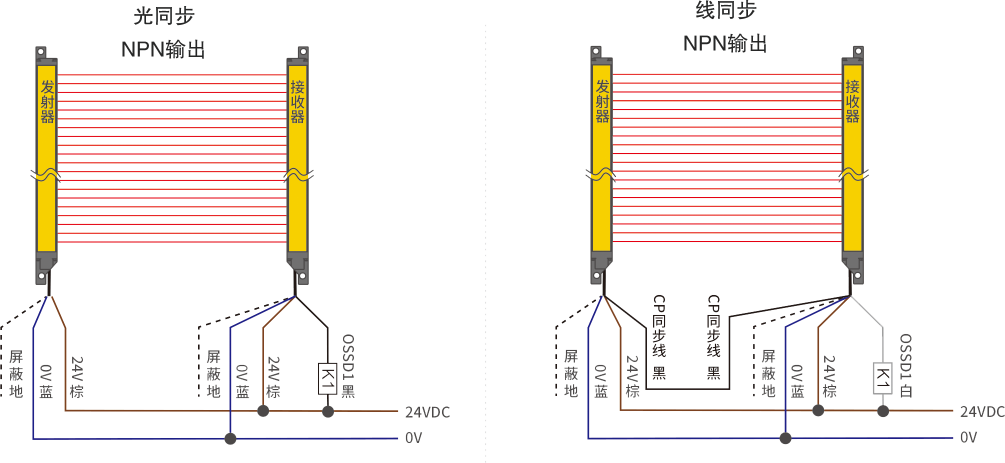

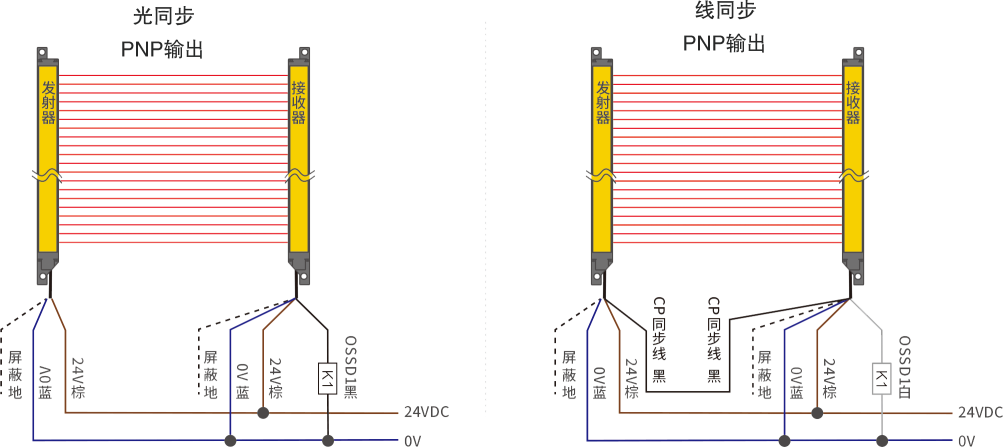

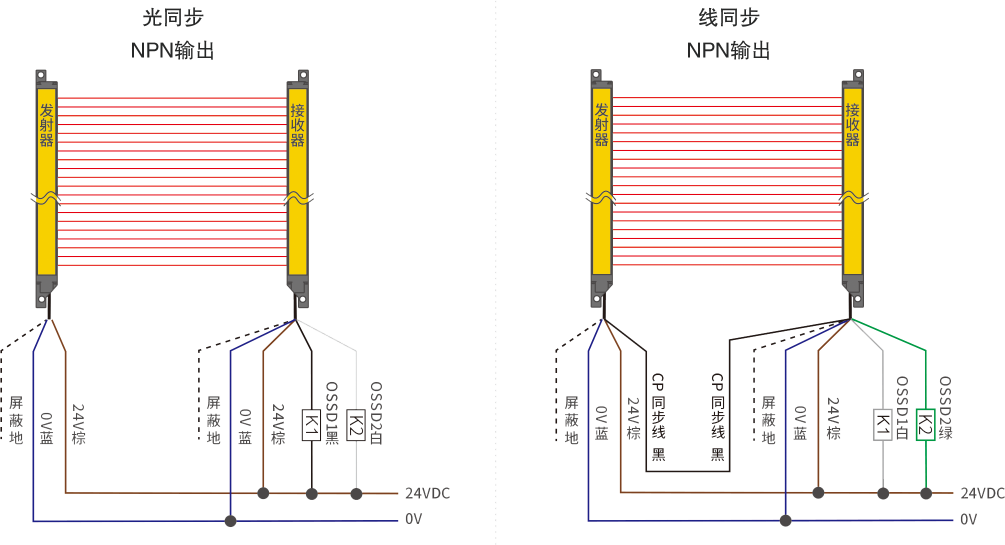

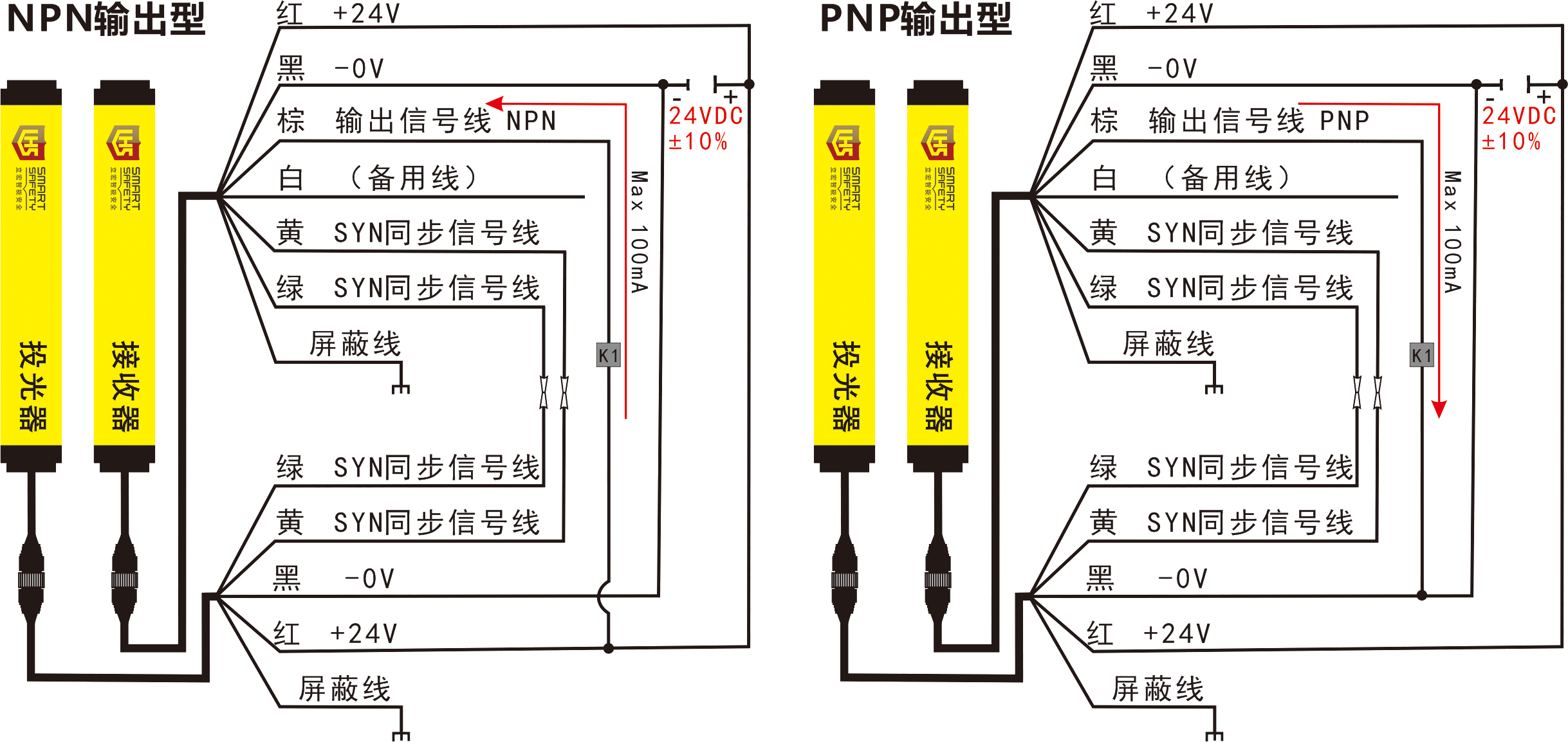

| ▊ | 接线图 |
 |  |

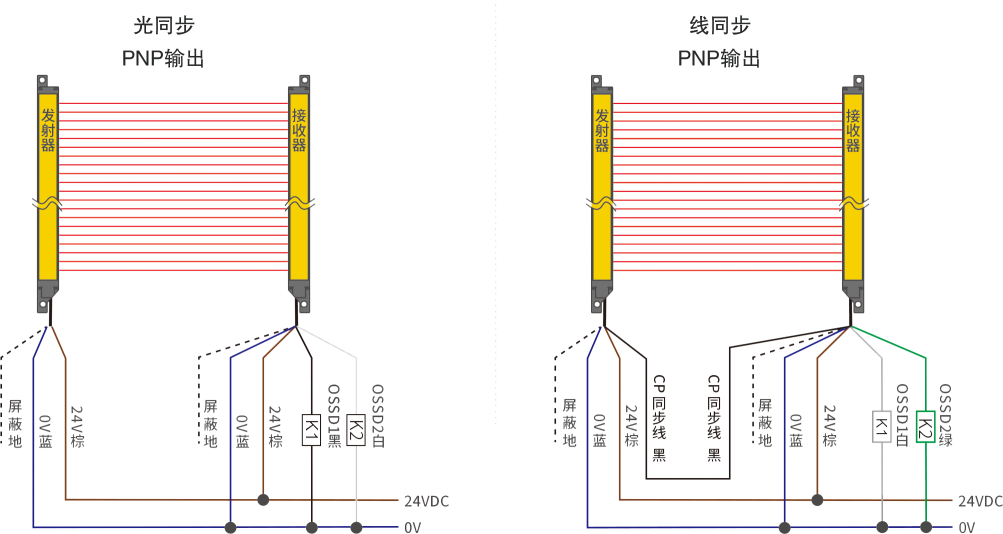

| ▊ | 双回路输出接线图 |
 |  |
注：双路安全输出、匹配安全控制器模块可以使系统达到4级最⾼安全回路

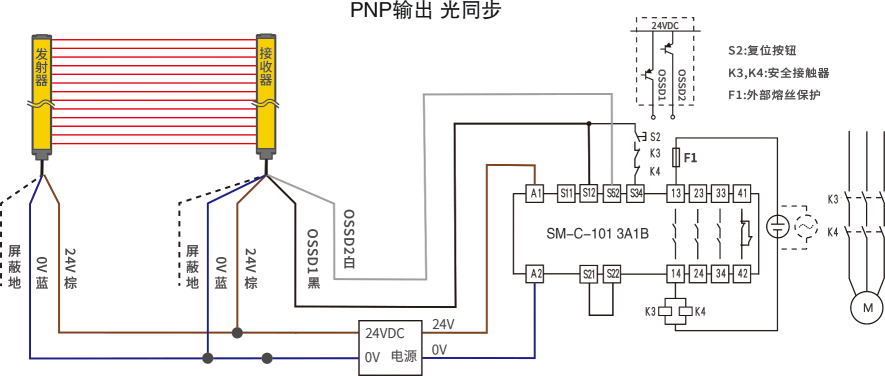

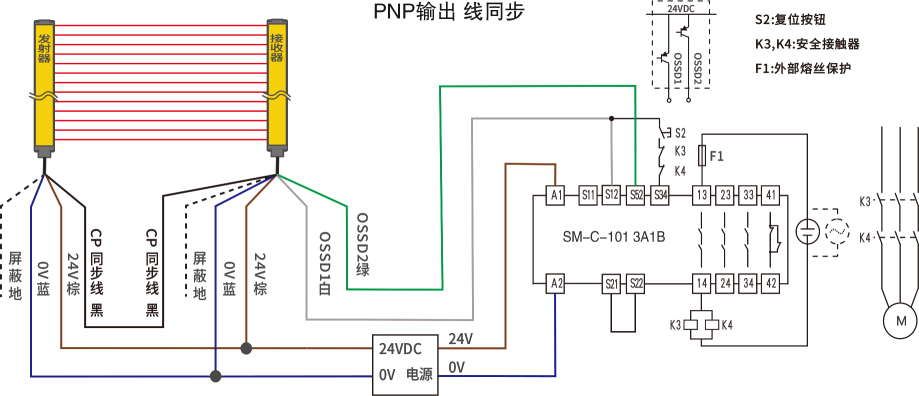

| ▊ | 安全光栅与安全控制器模块的接线图例 |
 |  |
注：双路独⽴冗余安全输出、匹配安全控制器模块可以使系统达到4级最⾼安全回路 | |

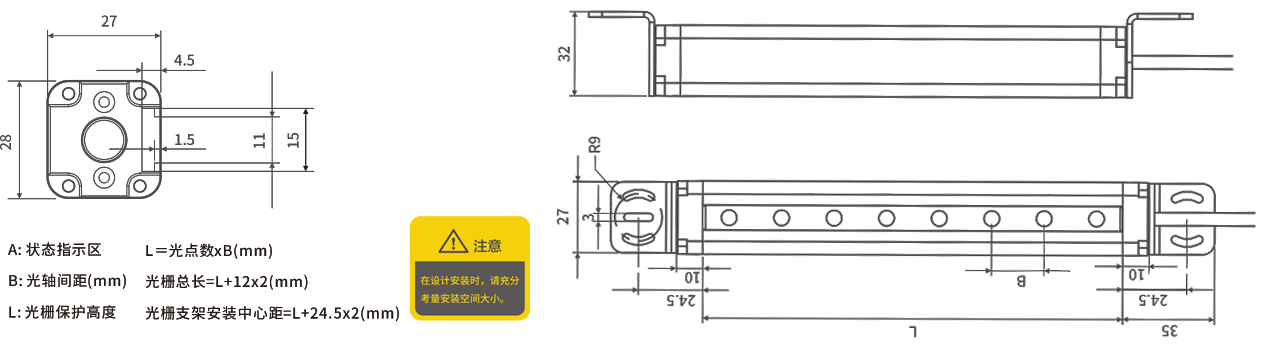

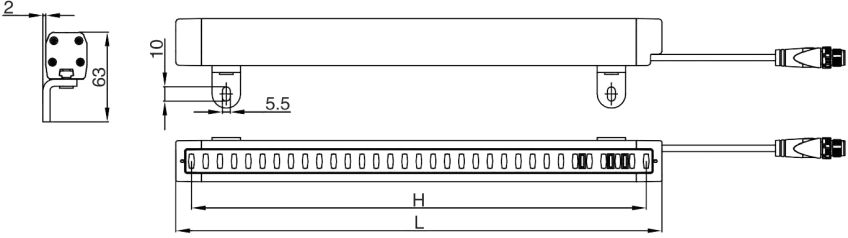

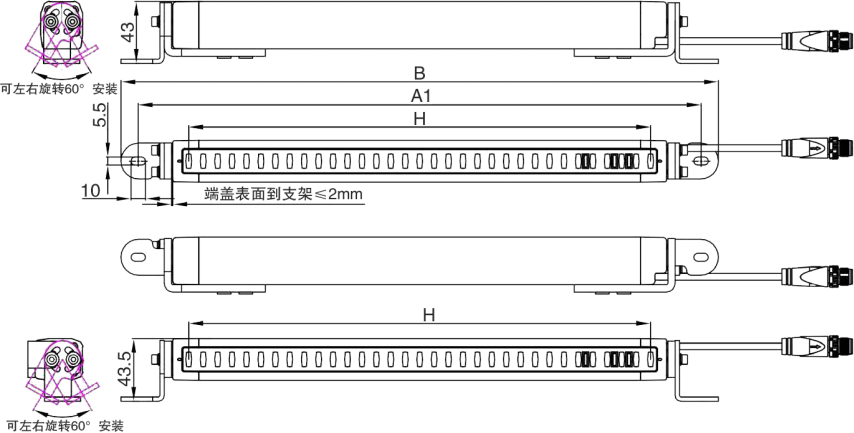

| ▊ | 外型尺寸 |
 |

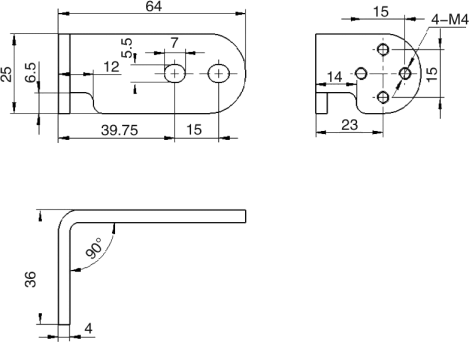

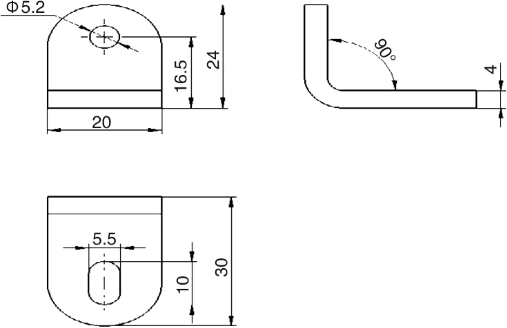

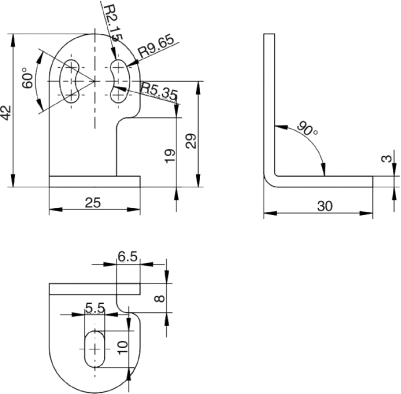

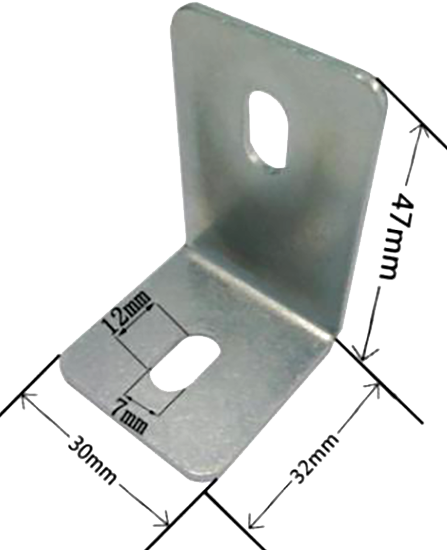

| ▊ | 附件信息 |
 |  |  |  | |||

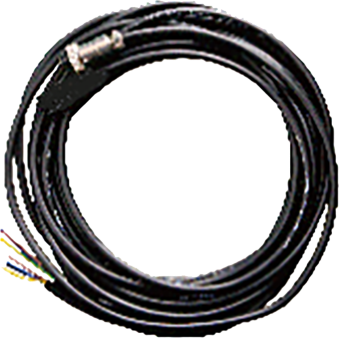

型号 | LE2XLF-23-03 2芯3针电缆 | LE2XLJ-34-03 3芯4针电缆 | LE2XLF-34-03 3芯4针电缆 | LE2XLJ-56-03 5芯6针电缆 | LE2ZJ-A-S | LE2ZJ-A-C |
光同步发射器线缆 | 光同步接收器线缆 | 线同步线发射器缆 | 线同步接收器线缆 | / | / | |

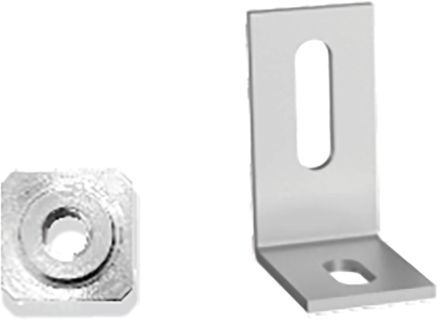

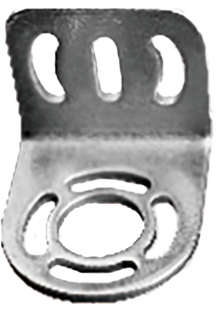

名称 | 光同步电缆线 | 线同步电缆线 | 上下两端安装支架 | 侧面长槽安装配件 | ||
长度 | 标配3米，其他长度可定制 | 标配3米，其他长度可定制 | / | / | ||
数量 | 1根 | 1根 | 1套 | 1套（选配） | ||
出厂配置 | √ | √ | / | / | ||
说明 | 每套光栅包含发射端，接收端各一根，直接出线型电缆线二根（各三米），1套上下两端安装支架 | |||||
