Collaborative robot early warning smart fence



New generation of robots enter the area safety inspection light curtain, which can be divided into three areas to improve production efficiency




product name

Product number

protected area

Protection length

Order number

Area detection safety light curtain

DM-R-2-3

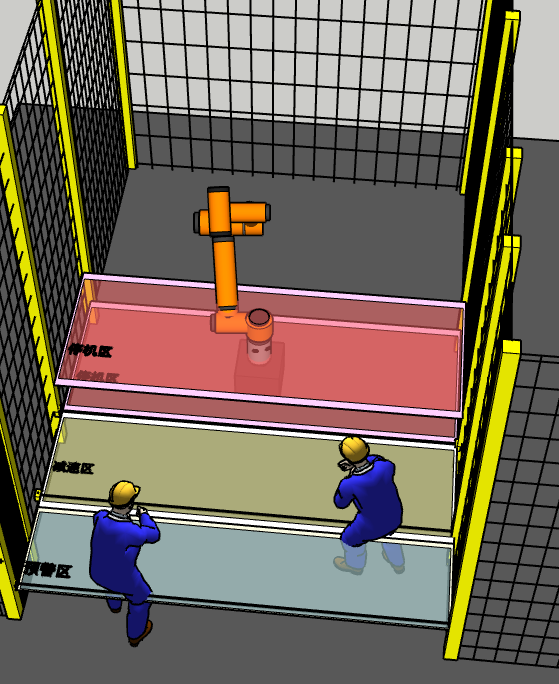

3 zones: alarm zone (observation zone), deceleration zone (debug zone), stop zone (danger zone)

safe distance

Dm-R-2-3

Area detection safety light curtain

DM-R-2-6

3 zones alarm zone (observation zone) deceleration zone (modulation zone) stop zone (danger zone)

Calculation shall prevail

DM-R-2-6

Explanation



Technical performance




Programmability: each beam is independently programmed, and the 6-points can be monitored by the Goldenest Program: continuous monitoring of each beam to detect whether there are objects in the protection field. When a detected object is sent, a safety signal is sent to save costs: according to processing The environment sets the detection distance of the light curtain light spot, which saves costs and can effectively protect personnel from 10mm detection fingers to 100mm detection human dream eaters. Most can be customized and partitioned: the same set of safety light curtains, different resolutions in different sections, and equipment No protected area safety certification



Security Level


• Type 2   - IEC 61496-1-2

• Category 2   - ISO/EN 13849-1

• PL d  - ISO/EN 13849-1

• SIL 2   - IEC 61508

• SIL CL 2   - IEC 62601 type2



Technical data


Supply voltage

24VDC +/- 5VDC

Current consumption Tx,Rx (without load)

< 10 mA at 30 VDC

Output

 PNP  (NPN Optional )

Max. output current

50 mA

Max. capacitive load

100 nF

Temperature range operation

 -40 … +60°C

Polarity protection

Yes

Enclosure rating

IP65

Max. ambient light

100,000 Lux

Certificates   CE批准中

CE  Approving




Safety circuit




Programming according to the input and output of the safety light curtain The input and output mode can be customized to program up to 6 beam spots 1-2 beam is the alarm zone 2-4 beam is the deceleration zone 4-6 beam stop zone

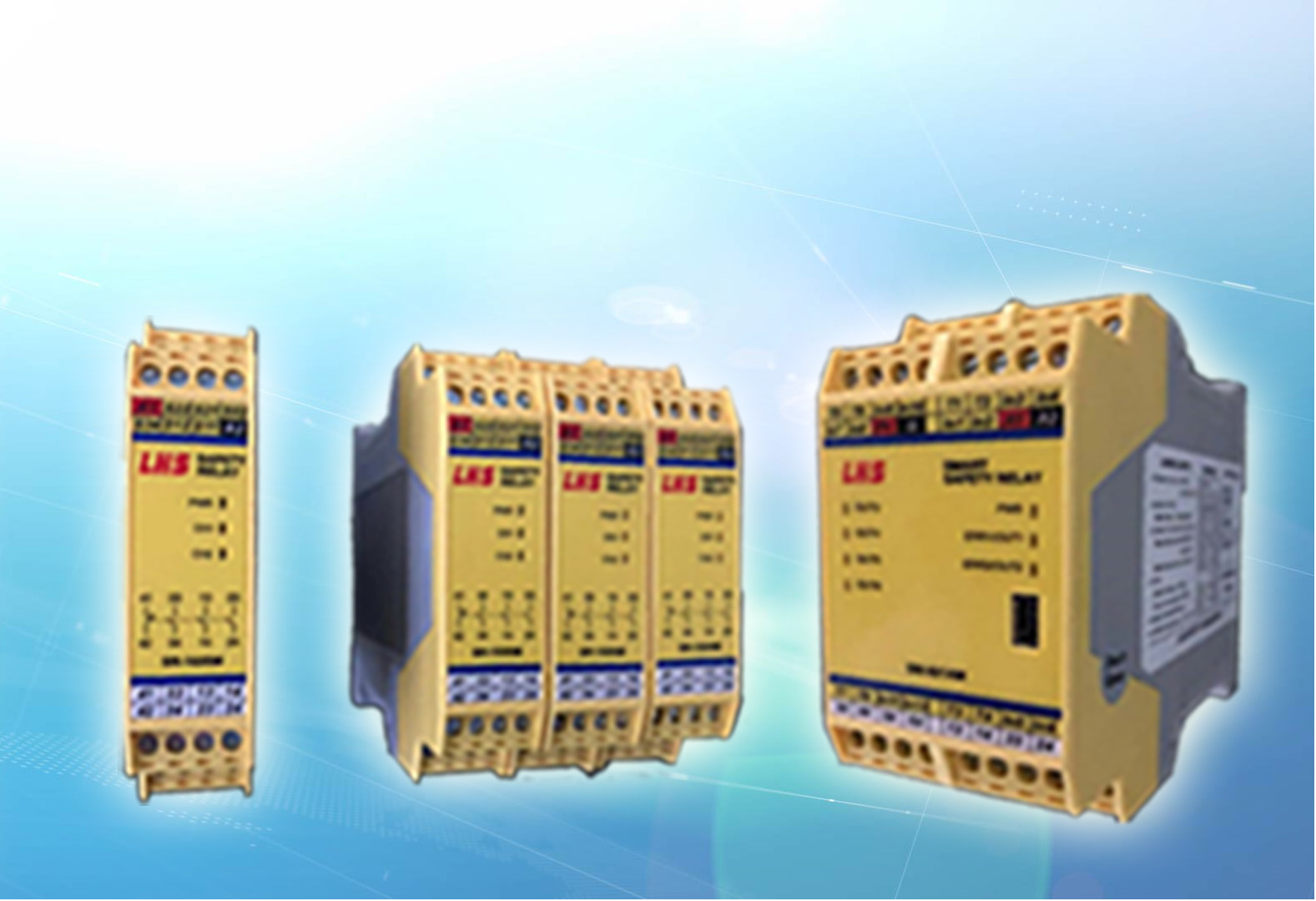

Connection method using Lihong LHS safety module

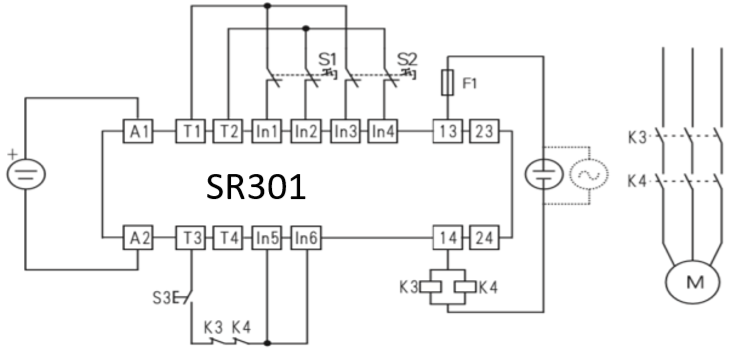

The input and output information of SR301 series safety controllers can be selected and can be customized to control three groups of safety light spot signals at the same time.





SR601 series safety controller

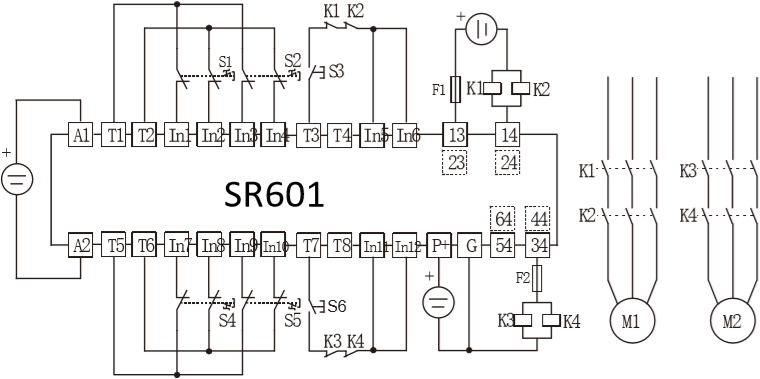

Can simultaneously receive 6 groups of safe light spot signals

Input and output mode can be customized input: six groups of safety light spot signals for logic programming

Combine according to the scene
